Industrial PSA Nitrogen Plant, Energy saving
PSA Nitrogen Generator Principle:
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and absorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to 0.8~1.0MPa, the air source enters in pressure-swing absorption tower for separation after being purified through the dry and oil-water separation process (filter). Oxygen molecules are diffused and absorbed in a carbon molecular sieve under pressure. Nonabsorbed nitrogen is discharged from the outlet of adsorption tower. Oxygen is desorbed, discharged and purged in an adsorption tower under depressurization. Moreover, adsorbents can be recycled.
What is PSA Technology?
PSA Technology is a very mature technology and has been around since the 1970s. In fact, thousands
of PSA plants are serving customers worldwide. We have supplied our PSA plants to customers in over
56 countries.
We explain the PSA technology below using a simple process diagram.
Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the
principle of air separation by adsorbing Oxygen and separating Nitrogen.
The pressure Swing Adsorption (PSA Nitrogen) process comprises 2 vessels filled with Carbon Molecular
Sieves (CMS). (see image below for detail of vessels).
Step 1: Adsorption
Pre-filtered compressed air is passed through one CMS-filled vessel. Oxygen is adsorbed by the CMS
and Nitrogen comes out as the product gas. After some time of operation, the CMS inside this vessel 'gets saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
Upon saturation of the CMS in the vessel, the process switches nitrogen generation to the other vessel,
while
allowing the saturated bed starts the process of desorption and regeneration. The waste gas (oxygen,
carbon
dioxide, etc.) is discharged into the atmosphere.
Step 3: Regeneration
In order to regenerate the CMS in the vessel, part of the Nitrogen produced by the other tower is
purged into this tower. This allows for quick regeneration of the CMS and to make it available for
production in the next cycle.
The cyclical nature of the process between the two vessels ensures the continuous production of pure
Nitrogen.
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
| 1 2 3 4 | PN-3-39 PN-5-29 PN-5-295 PN-8-295 | 3 5 5 8 | 99.9% 99.5% 99% 95% | 0.5 | 1800*1400*1500 |
| 5 6 7 8 | PN-5-49 PN-8-39 PN-12-295 PN-15-29 | 5 8 12 15 | 99.99% 99.9% 99.5% 99% | 0.5 | 1800*1400*1800 |
| 9 10 11 12 | PN-10-49 PN-15-39 PN-25-295 PN-30-39 | 10 15 25 30 | 99.99% 99.9% 99.5% 99% | 0.5 | 2000*1700*2250 |
| 13 14 15 16 | PN-15-49 PN-22-39 PN-35-295 PN-45-29 | 15 22 35 45 | 99.99% 99.9% 99.5% 99% | 0.5 | 2100*1800*2200 |
| 17 18 19 20 | PN-20-49 PN-30-39 PN-50-295 PN-60-29 | 20 30 50 60 | 99.99% 99.9% 99.5% 99% | 0.5 | 2200*1800*2200 |
| 21 22 23 24 | PN-30-49 PN-45-39 PN-75-295 PN-88-29 | 30 45 75 88 | 99.99% 99.9% 99.5% 99% | 0.5 | 2400*1900*2200 |
| 25 26 27 28 | PN-40-49 PN-60-39 PN-100-295 PN-120-29 | 40 60 100 120 | 99.99% 99.9% 99.5% 99% | 0.5 | 2500*2100*2500 |
| 29 30 31 32 | PN-50-49 PN-70-39 PN-120-295 PN-140-29 | 50 70 120 140 | 99.99% 99.9% 99.5% 99% | 0.5 | 2600*2200*2850 |
| ... | ... | ... | ... | ... | ... |
| Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
PSA Nitrogen Generator Technical parameter :
Resource: Air
Pressure:5-10 bar
Pressure dew point:≤10degree
Oil content ≤0.003mg/m3
Air -change with the Nitrogen& Oxygen
Product nitrogen
Pressure:≤9bar
Normal pressure dew point:≤－40degree
Purity:95%-99.9995%
Nitrogen capacity :5-5000Nm3/H
During the last 10 years,about 98% old customers firmly choose SINCE
Product Tags:
|
|

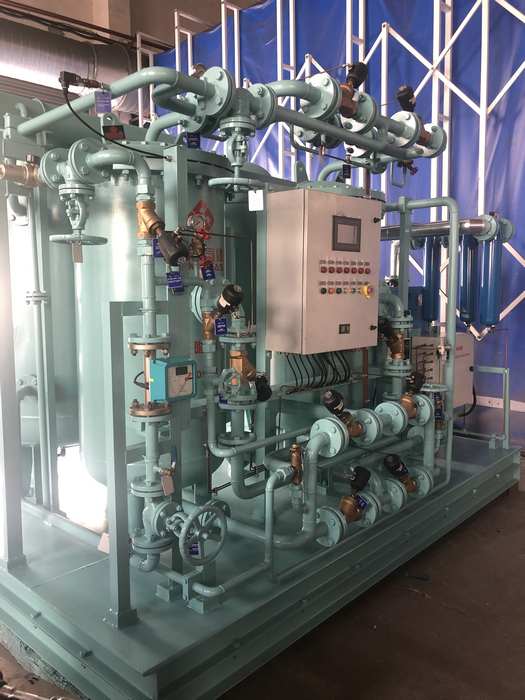

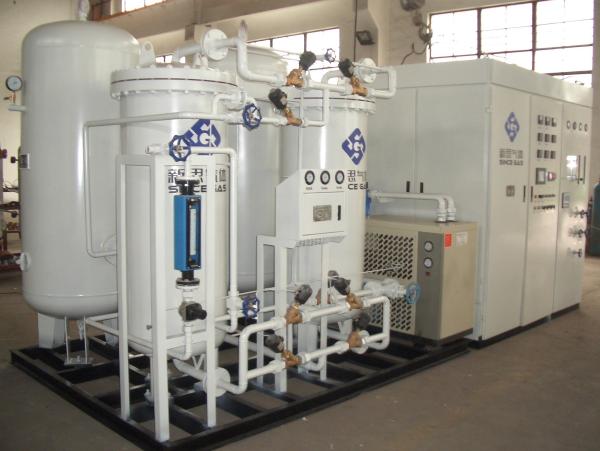

Industrial nitrogen PSA Nitrogen Plant Energy saving unit Images
|
