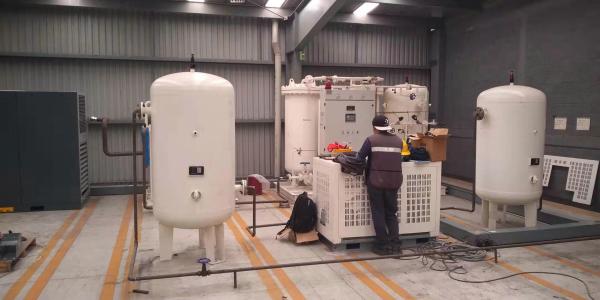

Large PSA Nitrogen Plant , High Pressure Nitrogen Generator Air Tank
PSA Nitrogen Plant Introduction:
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.
When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,
the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .
When one tower produces N2, another tower release the N2 by reducing the pressure to get the
renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration
to output N2 continuously.
PSA Nitrogen Plant Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
| 1 2 3 4 | PN-3-39 PN-5-29 PN-5-295 PN-8-295 | 3 5 5 8 | 99.9% 99.5% 99% 95% | 0.5 | 1800*1400*1500 |
| 5 6 7 8 | PN-5-49 PN-8-39 PN-12-295 PN-15-29 | 5 8 12 15 | 99.99% 99.9% 99.5% 99% | 0.5 | 1800*1400*1800 |
| 9 10 11 12 | PN-10-49 PN-15-39 PN-25-295 PN-30-39 | 10 15 25 30 | 99.99% 99.9% 99.5% 99% | 0.5 | 2000*1700*2250 |
| 13 14 15 16 | PN-15-49 PN-22-39 PN-35-295 PN-45-29 | 15 22 35 45 | 99.99% 99.9% 99.5% 99% | 0.5 | 2100*1800*2200 |
| 17 18 19 20 | PN-20-49 PN-30-39 PN-50-295 PN-60-29 | 20 30 50 60 | 99.99% 99.9% 99.5% 99% | 0.5 | 2200*1800*2200 |
| 21 22 23 24 | PN-30-49 PN-45-39 PN-75-295 PN-88-29 | 30 45 75 88 | 99.99% 99.9% 99.5% 99% | 0.5 | 2400*1900*2200 |
| 25 26 27 28 | PN-40-49 PN-60-39 PN-100-295 PN-120-29 | 40 60 100 120 | 99.99% 99.9% 99.5% 99% | 0.5 | 2500*2100*2500 |
| 29 30 31 32 | PN-50-49 PN-70-39 PN-120-295 PN-140-29 | 50 70 120 140 | 99.99% 99.9% 99.5% 99% | 0.5 | 2600*2200*2850 |
| 33 34 35 36 | PN-60-49 PN-90-39 PN-160-295 PN-190-29 | 60 90 160 190 | 99.99% 99.9% 99.5% 99% | 0.5 | 2800*2200*2500 |
| 37 | PN-80-49 | 80 | 99.99% | 0.5 | |
| 38 39 40 | PN-120-39 PN-200-295 PN-250-29 | 120 200 250 | 99.9% 99.5% 99% | 0.5 | 3200*1400*2800 |
| 41 42 43 44 | PN-100-49 PN-140-39 PN-250-295 PN-290-29 | 100 140 250 290 | 99.99% 99.9% 99.5% 99% | 0.5 | 3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
| Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
PSA Nitrogen Plant Figures:
Resource: Air
Pressure:5-10 bar
Pressure dew point:≤10degree
Oil content ≤0.003mg/m3
Air -change with the Nitrogen& Oxygen
Product nitrogen
Pressure:≤9bar
Normal pressure dew point:≤－40degree
Purity:95%-99.9995%
Nitrogen capacity :5-5000Nm3/H

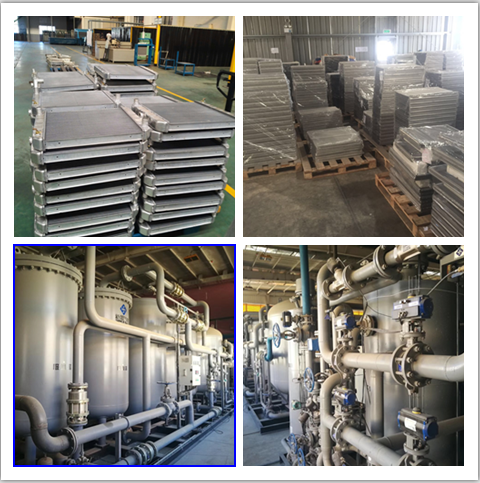

SUZHOU SINCE GAS SYSTME CO.,LTD is a high-tech joint-stock enterprises , which is located in Tai Hu lake of beautiful Yangtze river delta-Suzhou high and new technology develop zone, It covers an area of about 20,000 square meters. It has 4000 square meters of modern industrial plant and 1200 square meters of commercial intelligent office.
Our company devoting variety kinds of gas equipment creating,developing, designing, manufacturing, sale&service, providing professional industrial gas and equipped product.
